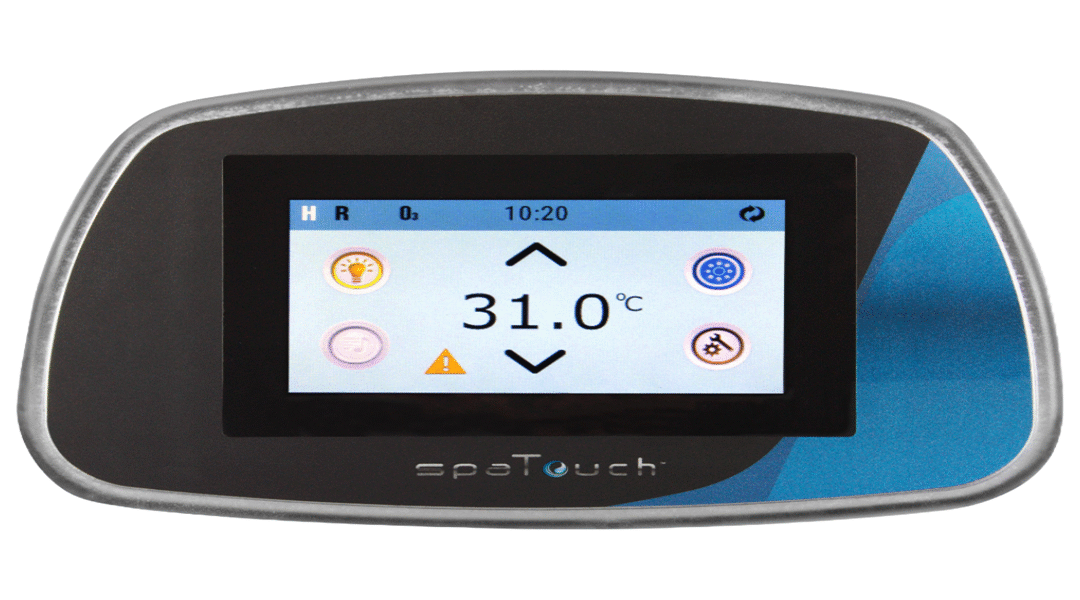

If you’ve recently purchased a spa or hot tub equipped with a Balboa Spa Touch Control Panel, congratulations — you’re on your way to enjoying an advanced, intuitive, and highly efficient spa experience. The Balboa Spa Touch system is designed to make controlling your spa’s temperature, jets, lights, and filtration cycles effortless. However, to get the most out of your investment, you’ll need to properly set it up and configure it for the first time.

Here’s a step-by-step guide to help you through the process.

1. Unboxing and Initial Setup

Before you power up the control panel, take a moment to check that all components are included and undamaged. You should have:

• The Balboa Spa Touch Control Panel

• The cable harness (for connecting to the spa pack)

• A mounting gasket or adhesive backing

• The installation and user manuals

Make sure your spa’s power supply is turned off at the main breaker. Safety should always come first — never handle electrical connections while power is on.

Next, mount the control panel to your spa’s cabinet or designated control area. Use the adhesive gasket to create a watertight seal. Feed the cable through the panel opening and connect it to the corresponding port on your Balboa spa pack, typically labeled “Panel” or “Topside Control.”

2. Powering On the System

Once everything is securely connected, turn the power back on at the breaker. The Balboa Spa Touch screen should illuminate, displaying the Balboa logo followed by a brief system boot sequence. This usually takes a few moments as the spa pack and control system synchronize.

If the display does not light up, double-check:

• That the cable is firmly connected

• The breaker is on

• There are no tripped GFCIs

After startup, the system will usually display the current water temperature or “— — —” if the sensors are still calibrating.

3. Setting the Temperature

One of the first things you’ll want to do is adjust your spa’s water temperature. On most Balboa touch panels, you can do this by tapping the temperature up (▲) or down (▼) icons on the screen.

• The default temperature is typically set around 100°F (38°C).

• The maximum limit is around 104°F (40°C).

Allow some time for the water to reach your desired temperature — this can take several hours, depending on your heater capacity and starting water temperature.

4. Configuring Modes and Functions

Balboa systems offer multiple modes and settings for efficiency and comfort:

• Standard Mode (Std): Maintains the set temperature continuously. Ideal for frequent spa use.

• Economy Mode (Ecn): Heats only during filtration cycles to save energy.

• Sleep Mode (SLP): Heats minimally — perfect for when you’re away for several days.

To access or change these settings, go to the Settings Menu on your Spa Touch display and choose the Mode option. Some systems allow scheduling of heating or filtration cycles for even better energy management.

5. Adjusting Filtration Cycles

Filtration is crucial for keeping your spa water clear and hygienic. In your Balboa Spa Touch panel:

• Locate the “Filter” or “FL” setting.

• Set the duration and frequency of your filtration cycles (for example, two cycles per day lasting two hours each).

Your system may also support automatic purge cycles, which briefly activate jets to flush plumbing lines — these typically occur once every 12 hours.

6. Setting Up Additional Features

Depending on your spa model, you may have access to advanced features such as:

• Lighting control: Adjust LED brightness or color themes.

• Jets and blower control: Customize jet intensity for various zones.

• Wi-Fi or app connectivity: Pair your Balboa system with the Balboa Worldwide App (bwa™) for remote control from your smartphone.

To connect Wi-Fi, navigate to Settings > Wi-Fi Setup and follow the on-screen instructions to connect to your home network.

7. Final Checks and Maintenance Tips

Once setup is complete, test all functions — jets, lights, heater, and filtration. If everything operates smoothly, your Balboa Spa Touch Control Panel is ready for regular use.
To maintain optimal performance:

• Keep the panel clean with a soft, damp cloth (avoid harsh chemicals).

• Periodically check for software updates if your system supports Wi-Fi.

• Review your spa’s manual for troubleshooting common alerts or codes.

Conclusion

Setting up your Balboa Spa Touch Control Panel is a simple process, but taking the time to configure it correctly ensures you get the best possible spa experience. From precise temperature control to customizable settings, this intuitive system gives you full command of your relaxation environment. Once configured, all that’s left to do is sit back, unwind, and let your spa do the rest.
